Elastomeric Composite Cable Manufacturers | Elastomeric Composite Cable Suppliers

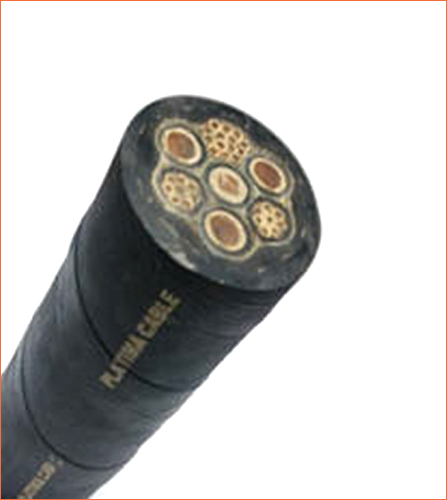

Elastomeric Composite Cable

We are an ISO 9001: 2008 certified company, engaged in manufacturing and supplying Elastomeric Composite Cable. These cables are manufactured using high-grade of Elastomeric compounds for insulating and sheathing of cables are formulated to meet the requirement of 6380, BS 6899, IEC 60502 and other international specification procured from the reliable vendors of the market. Our cables are widely demanded by our customers as the wires are perfectly aligned and very durable. These cables find application in telecommunication and electronic industries. To meet the various demands of our clients, we offer the Composite Cable in many sizes and lengths.

Request a Quote

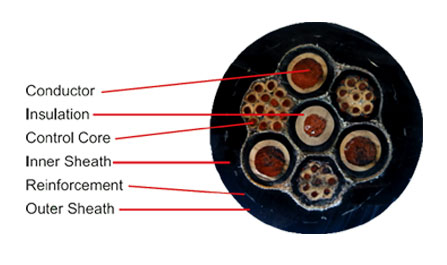

General Construction (Conforming to IS 9968 PT -1)

Conductor : Annealed tinned Copper wires Solid (Class 1), Stranded (Class 2), flexible (Class 5) complying with the requirement of IS 8130-1984
Seperator Tape : Suitable material seperator tape may be applied over the conductor
Insulation :
1. General service Elastomer compound Type IE 1 of IS 6380-1984
2. Heat Resisting Elastomer compound Type IE 2 of IS 6380-1984
3. Silicone Rubber Type IE 5 of IS 6380-1984
Core Identification : Coloured insulation, Nos. PE tape, Coloured proofed tape, Nos. Printing
Fillers : Natural or synthetic fibres or elastomer suitable for the operating temperature and compatible with the insulating material.
Sheath :
1. General service sheath Type SE1/SE2 of Is 6380-1984
2. Heat Resisting Heavy Duty Sheath Type SE3/SE4 of IS 6380-1984
3. High Temperature Sheath Type SE 5 of IS 6380-1984

Salient Features

Heat resistant
Water proof
High tensile strength
High conductivity
