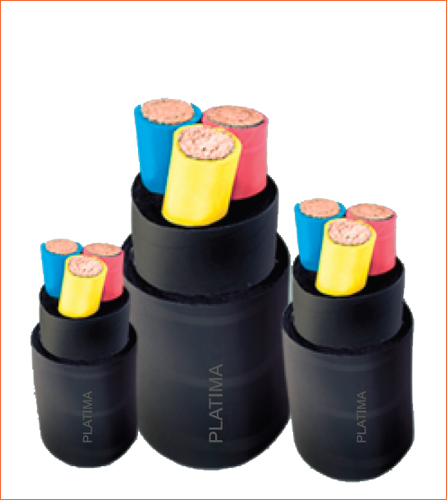

Trailing Cable

Owing to our vast experience in this field, we are able to manufacture and supply high quality Trailing Rubber Cables. Made using top quality annealed copper and Elastomeric compounds for insulating and sheathing of cables are formulated to meet the requirement of 6380, BS 6899, IEC 60502 and other international specification are very durable and heat resistant. The Trailing Cable is mainly used for trailing, festooning, mobile machines and Eot Cranes, Stacker Reclaimer, Winding & Rewinding Purpose, Hoists.

Request a Quote

General Construction (Conforming to IS 9968 PT -1)

Conductor : Annealed tinned Copper wires Solid (Class 1), Stranded (Class 2), flexible (Class 5) complying with the requirement of IS 8130-1984
Seperator Tape : Suitable material seperator tape may be applied over the conductor
Insulation :
1. General service Elastomer compound Type IE 1 of IS 6380-1984
2. Heat Resisting Elastomer compound Type IE 2 of IS 6380-1984
3. Silicone Rubber Type IE 5 of IS 6380-1984
Core Identification : Coloured insulation, Nos. PE tape, Coloured proofed tape, Nos. Printing
Fillers : Natural or synthetic fibres or elastomer suitable for the operating temperature and compatible with the insulating material.
Sheath :
1. General service sheath Type SE1/SE2 of Is 6380-1984
2. Heat Resisting Heavy Duty Sheath Type SE3/SE4 of IS 6380-1984
3. High Temperature Sheath Type SE 5 of IS 6380-1984

Core Identification

1 core: Black
2 cores: Red & Black
3 cores: Red, yellow & Blue
4 cores: Red, Yellow, Blue & Green
5 cores: Red, Yellow, Blue, Black & Green
6 cores and above are numbered
