Ship Wiring and Marine Cables

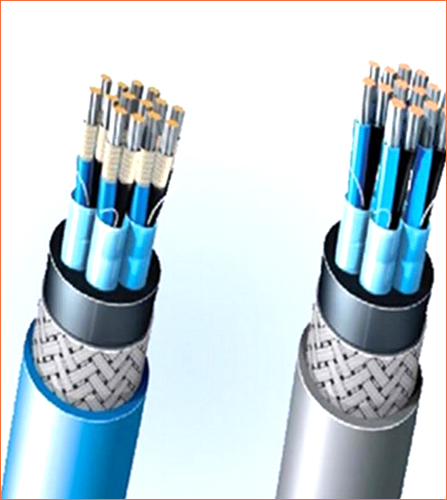

We are leading manufacturers of Fire Survival Ship Cables. We manufacture our products from the latest technology and develop them according to the specified standards under Highly Qualified Engineers. Owing to our immense knowledge in this industry, we are able to manufacture and supply superior quality Marine Cable. The cable, which we offer are mainly used in ships as these are made using quality approved IEC 60331 annealed tinned copper to ensure excellent conductivity. These wires are insulated with ethylene propylene rubber and mica glass tape fire barrier to prevent fire at any cost. In order to meet the diversified demands of our clients, we offer the Marine Cable in many specifications.

Core identification
  • 2 cores: Red & Black
  • 3 cores: Red, yellow & Blue
  • 4 cores: Red, Yellow, Blue & Green
  • 5 cores: Red, Yellow, Blue, Black & Green
  • 6 cores and above are numbered
Fillers
Natural or synthetic fibres or elastomer suitable for the operating temperature and compatible with the insulating material.
Braiding
Galvanized Steel Wire Braid Armoured.
Sheath
EPR Outer Sheath
Colour
Black
Voltage
0.6/1kV
Standards
IEC 60331
Applications
In Ships where fire protection is concerned.
